dao流程的分析

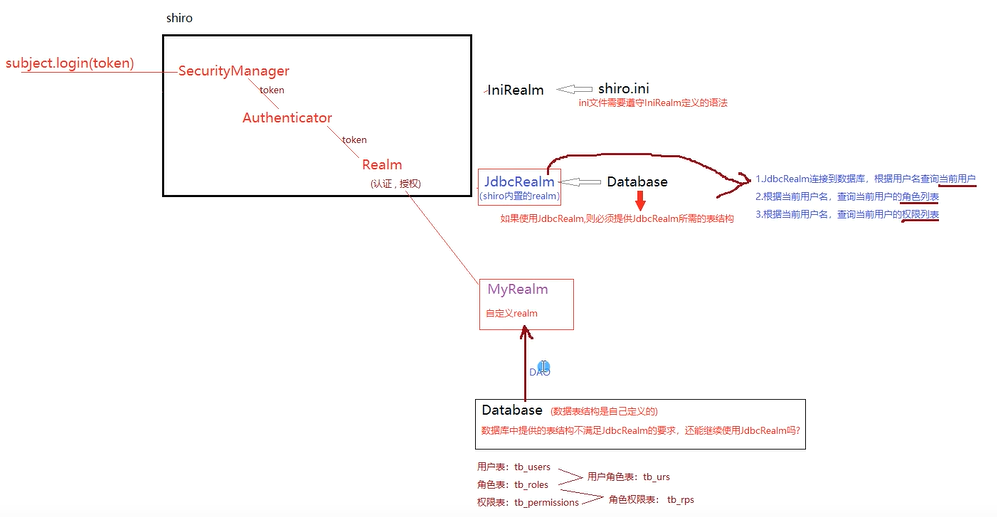

​ 由于这次自定义myRealm,而shiro自带JdbcRealm帮我们封装好了，负责认证和授权过程sql查询。所以自定义myRealm也要写这些SQL语句。如下

myRealm也要完成认证和授权的SQL
1。 认证（登录时）验证查询
根据username查询用户信息。简单的单表查询
2。授权查询
根据用户名查询该用户的角色信息
根据用户名查询该用户的权限信息
avatar

我的SQL

认证SQL

​ 单表查询根据username查询用户信息

1
select u.id from users u where u.username = 'zhoudu';
授权SQL

​ 根据用户名查询该用户的角色信息，①先查用户角色表中该用户的角色编号。②再根据role_id联合查询用户表、角色表，并且2个表的角色id一样。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
第一步
SELECT
	ur.rid FROM users_roles ur
WHERE
	ur.uid = (	SELECT	u.id FROM users u WHEREu.username = 'zhoudu')

第二步
SELECT
	u.username,r.role_name FROM roles r, users u
WHERE
	r.role_id IN (
	SELECT ur.rid FROM	users_roles ur
        WHERE
	ur.uid = ( SELECT u.id FROM users u WHERE u.username = 'zhoudu' )) AND u.username = 'zhoudu';

​ 根据用户名查询权限信息。①先查用户角色表中该用户的角色编号，②再根据rid关联角色权限表、权限表、用户表，并且角色权限表中的rid和①的rid一样，角色权限表中的pid和权限表permission_id一样

1
2
3
4
5
6
7
8
9
10
11
12
13
14
第一步
SELECT
	ur.rid FROM users_roles ur
WHERE
	ur.uid = (	SELECT	u.id FROM users u WHEREu.username = 'zhoudu')
第二步
SELECT DISTINCT
	rp.pid, p.permission_code, p.permission_name, u.username
FROM
	roles_permissions rp, permissions p, users u
WHERE
	rp.rid IN (
	SELECT ur.rid FROM users_roles ur WHERE
	ur.uid = ( SELECT u.id FROM users u WHERE u.username = 'zhoudu' )) AND p.permission_id = rp.pid AND u.username = 'zhoudu';

改进的SQL

​ 通过username查询到角色名称。使用连接查询的方法(涉及3张表，users、users_roles、roles)。SQL如下

1
2
3
4
5
6
7
SELECT
	u.username, r.role_name
FROM
	users u
	INNER JOIN users_roles ur ON u.id = ur.uid
	INNER JOIN roles r ON r.role_id = ur.rid
WHERE u.username = 'zhoudu';

​ 通过username查询权限信息，关联5张表

1
2
3
4
5
6
7
select u.username, p.permission_code
from
users u inner join users_roles ur on u.id=ur.uid
				inner join roles r on r.role_id=ur.rid
				inner join roles_permissions rp on rp.rid=r.role_id
				inner join permissions p on p.permission_id=rp.pid
where u.username='zhoudu';

Dao流程

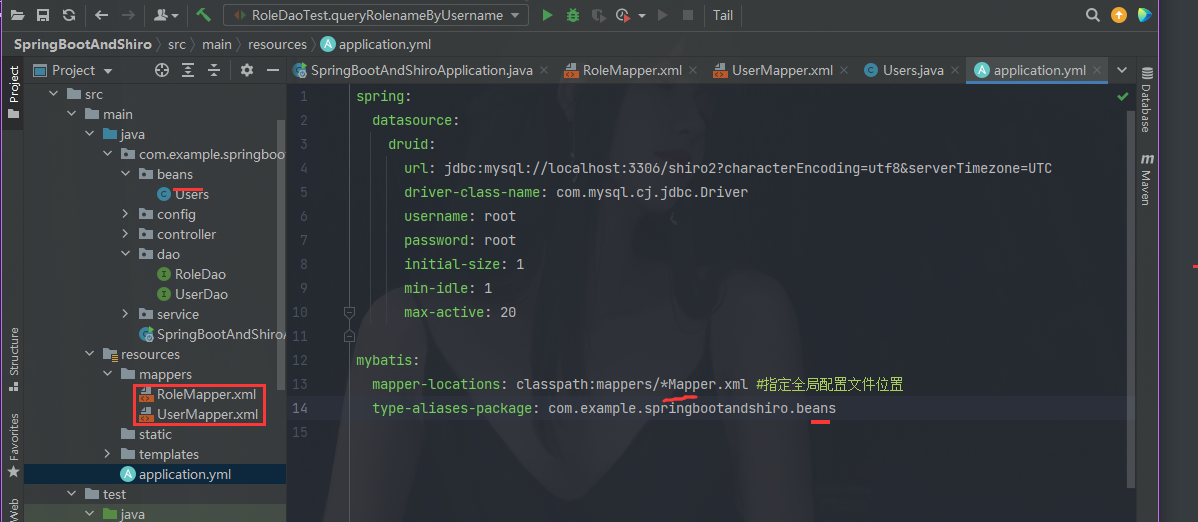

​ 以查询权限为例，先创建PermissionDao和对应的Mapper.xml。因为application.yml中设置mappers和生成beans的路径。所以PermissionMapper.xml必须在resource的mappers包下，而实体类必须在beans包下

avatar

​ 并在启动配置类中SpringbootAndShiroApplication类中配置mapper扫描注解。指定dao的SQL语句，而不用在每个dao接口上写@Mapper，所以的SpringbootAndShiroApplication类的上方加上@MapperScan(basePackages = “com.example.springbootandshiro.dao”)。有我们只需要权限代码不需要权限的其它信息，所以PermissionMapper.xml的返回值是Set类型。string—>”sys:order:add“等等

PermissionDao
1
2
3
public interface PermissionDao {
    public Set<String> queryPermissionCodeByUsername(String username);
}
PermissionMapper
1
2
3
4
5
6
7
8
9
10
11
12
13
14
<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper
        PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="com.example.springbootandshiro.dao.PermissionDao">
    <select id="queryPermissionCodeByUsername" resultSets="java.util.Set" resultType="string">
        select p.permission_code
        from
            users u inner join users_roles ur on u.id=ur.uid
                    inner join roles r on r.role_id=ur.rid
                    inner join roles_permissions rp on rp.rid=r.role_id
                    inner join permissions p on p.permission_id=rp.pid
        where u.username=#{username};
    </select>
</mapper>
PermissionDaoTest
1
2
3
4
5
6
7
8
9
10
11
12
13
14
@RunWith(SpringRunner.class)
@SpringBootTest(classes = SpringBootAndShiroApplication.class)
public class PermissionDaoTest {
    @Resource
    private PermissionDao permissionDao;
    @Test
    public void queryRolenameByUsername() {
        Set<String> permissionCodes = permissionDao.queryPermissionCodeByUsername("zhoudu");
        Iterator<String> it = permissionCodes.iterator();
        while(it.hasNext()) {
            System.out.println(it.next());
        }
    }
}

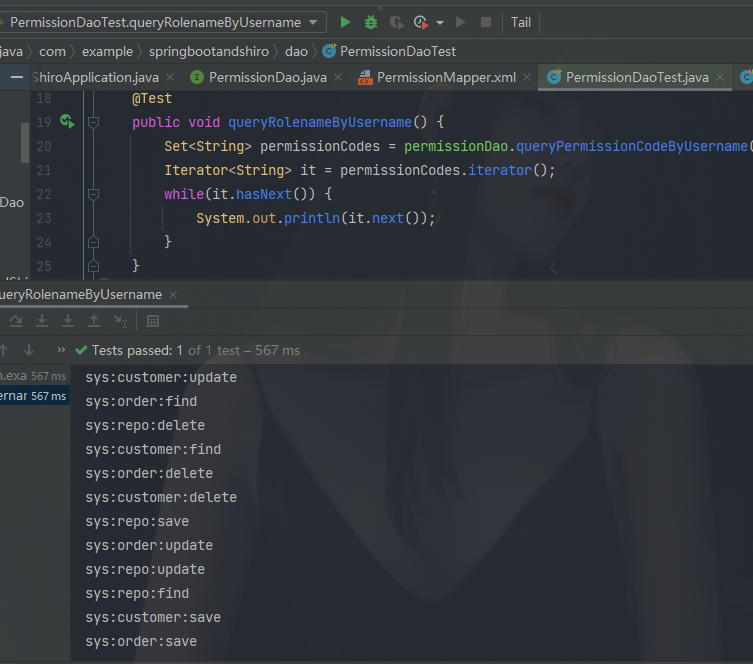

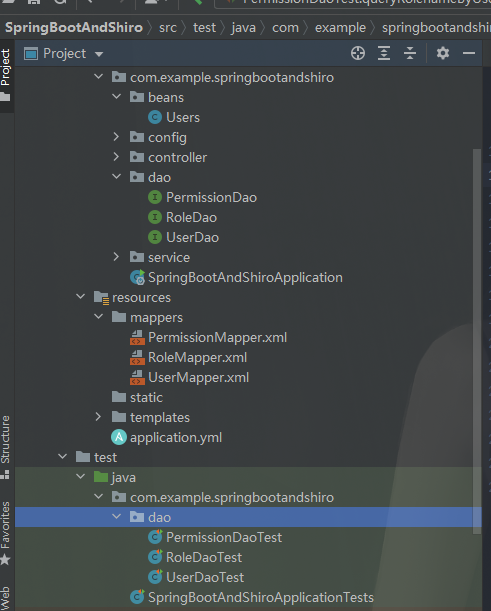

项目结构与测试结果
avatar
avatar
